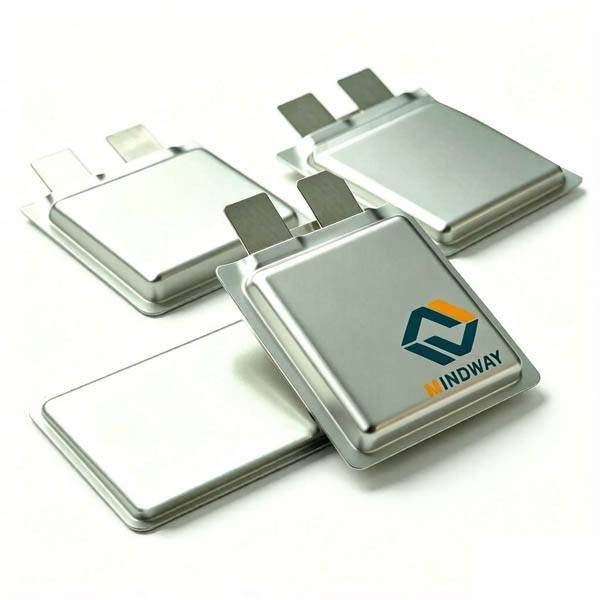

350 Wh/kg Ultra-High Energy Density Lithium battery

The UHD350 balances high energy density (350 Wh/kg) with reliable discharge capability, ideal for UAVs and eVTOL systems needing both endurance and moderate power output.

Inquire

Product Description
Specification
Product Advantage
FAQ

Product Description

Overview

The UHD350 balances high energy density (350 Wh/kg) with reliable discharge capability, ideal for UAVs and eVTOL systems needing both endurance and moderate power output.

High Energy Density + Balanced Power Capability

Key Features

High energy density in the 350 Wh/kg class
Low internal resistance for efficient power delivery
Stable discharge curves across wide load ranges
Safe and balanced design for multi-rotor UAVs

Technical Strengths

Excellent thermal uniformity
Minimal voltage sag during mid–high load
Longer cycle life compared to ultra-high-density counterparts
Optimized electrode design for durability

Application Scenarios

Long-endurance fixed-wing UAVs
Long-range surveillance & mapping platforms
eVTOL power systems

Comparison Table with Ordinary Lithium Batteries

Feature	400 Wh/kg Ultra-High Energy Battery	Standard Li-ion (200-250 Wh/kg)
Energy Density	≥400 Wh/kg	200-250 Wh/kg
Weight for same capacity	~50% lighter	Reference
Flight time (UAV)	Up to 2x longer	Standard

Customization Options

Cell dimensions and shape (pouch)
Capacity from 15Ah to 40Ah+
Nominal Voltage (3.7V)
BMS (can be customized.)
Connector types (can be customized.)

UHD350-20Ah Discharge Curve

Specification

Number	Items	Specifications
1	Nominal Voltage	3.6V
2	Charge Cut-off Voltage	4.25V
3	Discharge Cut-off Voltage	2.8V
4	Nominal Capacity	20Ah
5	Energy Density	350Wh/kg
6	Max. Continuous Discharge Current	5C / 100A
7	Max. Pulse Discharge Current	7C / 140A
8	Weight	Approx. 210g
9	Cycle Life	≥ 500 times @ 80%
10	Dimension	10.185120mm

Product Advantage

1

High Energy Density
2

Low Internal Resistance
3

Stable Discharge
4

Safe

Frequently Asked Questions

What is the actual energy density of this 350 Wh/kg lithium battery?
+

The cell achieves ≥350 Wh/kg at nominal voltage (3.7V). Third-party test reports are available upon request.
How does this 350 Wh/kg battery compare to your 400 Wh/kg version?
+

The 350 Wh/kg cell offers slightly lower specific energy but provides longer cycle life (500+ vs 300 cycles) and lower cost per Wh, making it ideal for applications where ultra-high energy density is still required but budget or cycle life is a priority.
Is this battery suitable for eVTOL aircraft?
+

Yes, the 350 Wh/kg ultra-high energy density battery is designed for aerospace applications including eVTOL, UAVs, and electric aircraft. Custom cells can be certified to relevant standards.
What is the minimum order quantity (MOQ)?
+

MOQ for standard 350 Wh/kg cells is 1000 units. Sample quantities are available for engineering evaluation.
Can I get a custom shape for a specific drone frame?
+

Absolutely. We offer custom pouch cell dimensions to fit your battery bay. Minimum order for custom shapes starts at 1000 units.
