1.Breaking the 400 Wh/kg Barrier: The Synergy of High Energy Density and 3.85V Platform
At Mindway, we continuously push the boundaries of lithium battery technology to meet the evolving demands of aerospace and unmanned systems. Today, we are pleased to introduce our MWUHD400 high-energy lithium cell, designed specifically for Long-endurance UAVs where energy density, system voltage, and cycle stability matter most.
2. The Technical Advantages of a 3.85V High-Voltage Lithium System
2.1 Ultra-High Energy Density
The MWUHD400 cell delivers a typical capacity of 41.8 Ah with an approximate weight of 400 grams, achieving an energy density close to 400 Wh/kg. This enables UAV designers to significantly extend flight endurance without increasing payload mass—an essential advantage for long-range and long-loiter missions.
2.2 High-Voltage Platform (3.85 V Nominal)
With a nominal voltage of 3.85 V and a charge cut-off voltage of 4.4 V, this cell supports higher system voltage architectures. Compared with conventional 3.6–3.7 V platforms, higher voltage translates into:
Improved power efficiency
Reduced current at the same power level
Lower thermal stress at the system level
This makes the cell particularly suitable for high-voltage UAV battery packs and advanced power systems.
2.3 High Discharge Capability

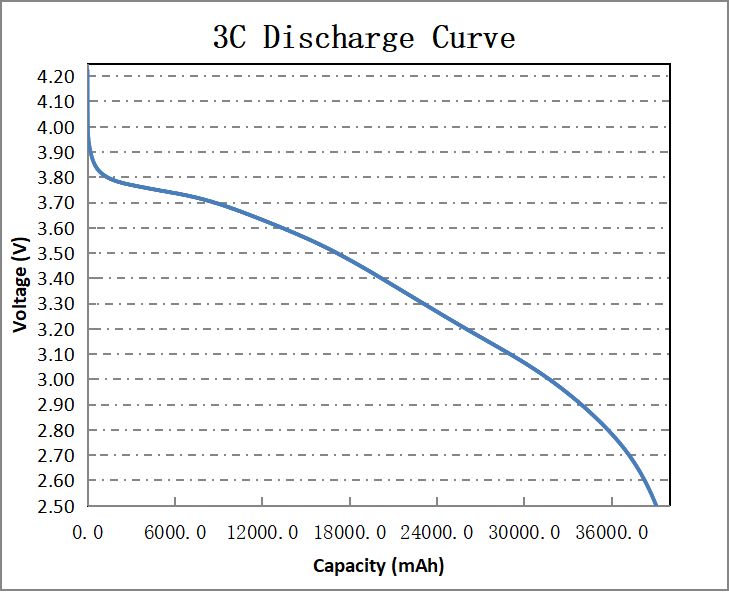

It supports a continuous discharge rate up to 3C (123 A), providing stable output during high-power phases such as takeoff, climb, or maneuvering.
2.4 Long Cycle Life for Operational Reliability

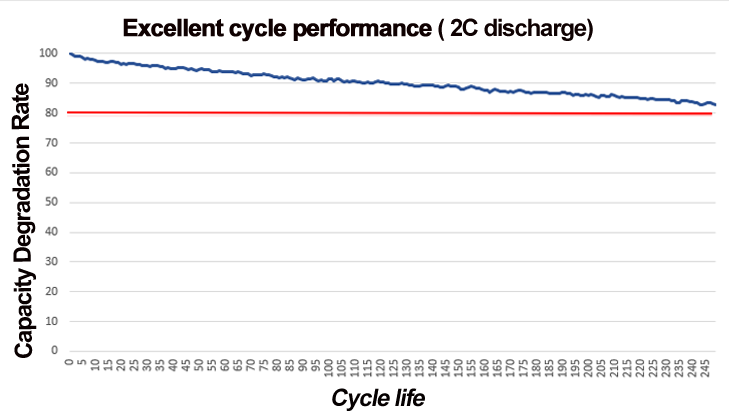

Under standard conditions, the 400 Wh/kg cell achieves ≥500 cycles 80%. This balance between ultra-high energy density and cycle durability helps reduce total cost of ownership for professional and industrial users.
The integration of 400 Wh/kg technology into professional platforms can potentially double the UAV flight time, allowing for longer long-endurance missions without increasing the overall takeoff weight.
Mindway's Long-endurance UAV battery :
400wh/kg - Mindway 39000mAh 12S UAV Battery
400wh/kg - Mindway 33000mAh 6S UAV Battery
500Wh/kg Tactical Core Series - Next-Gen Ultra-Lightweight Battery Cells
3. Designed for Real-World UAV Applications
While traditional industrial batteries plateau at 250-280 Wh/kg, our next-gen 400 Wh/kg High energy density cells provide a significant leap in gravimetric energy density. the MWUHD400 cell is well suited for:
Fixed-wing drones requiring extended flight time
Long-endurance surveillance and mapping UAVs
High-voltage battery packs for professional UAV systems
Weight-sensitive aerospace and special mission applications
The cell also demonstrates strong environmental adaptability, operating across a wide temperature range and passing vibration and drop safety tests, ensuring reliability in demanding operating conditions.
4.How our 400Wh/kg battery doubled flight time for a Composite Wing
Cruise UAV real-world example：Flight endurance increased from 3 hours to 6 hours
For a deeper dive into the thermal challenges that accompany high-energy-density battery designs—and practical solutions to address them—check out our dedicated article:
FAQ
Q: Why is 400 Wh/kg considered a milestone for drone batteries?
A: Achieving 400 Wh/kg allows drones and eVTOLs to significantly reduce battery weight while maintaining high energy reserves, directly translating into longer flight durations and the ability to carry more advanced sensors.
Q: What are the benefits of a 3.85V high-voltage battery platform?
A: A 3.85V platform provides a higher voltage plateau throughout the discharge cycle, ensuring more consistent power delivery to motors and electronics, even at the end of a mission.
At Mindway, we believe battery performance should enable system innovation—not limit it. The MWUHD400 is another step toward lighter, longer-flying, and more efficient unmanned platforms.
If you are developing next-generation UAVs or high-voltage battery systems and would like to explore customization or integration support, feel free to connect with us.
