Mindway UAV Battery Catalog: Redefining Long Endurance with 400Wh/kg Technology

Mindway is a leading innovator in advanced battery Solutions.

Inquire

Product Description
Specification

Product Description

Welcome to the Mindway UAV Battery Catalog. We are the pioneers in overcoming flight time constraints through our 400Wh/kg High-Density technology. By maximizing energy-to-weight ratios, we provide the Long Endurance battery solutions essential for tactical UAVs and next-gen eVTOL platforms. Experience uninterrupted power designed for the most demanding aerospace missions.

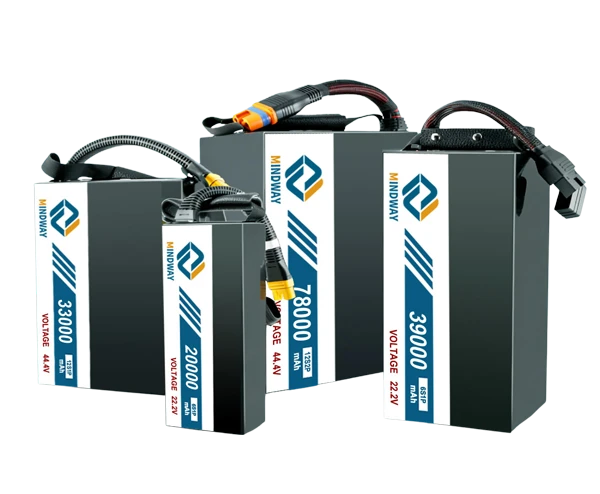

400Wh/kg high density UAV battery series catalog

Superior Battery Performance：

▪ High Energy Density: Up to 400 Wh/kg

▪ High Power Density: Up to 25C

▪ Long Cycle Life: 1800 cycles@80%

▪ Wide Operating Temperature: -43°C to 70°C

Specification

Ultra-High Energy Density

Series	Energy Density (Wh/kg)	Maximum Continuous Discharge Rate	Cycle Life	Nominal Capacity (Ah)	Nominal Voltage (V)
UHD400	400Wh/kg Core Advantage	3C	500 Times@80%	41Ah	3.85V
UHD400	400Wh/kg Core Advantage	3C	200 Times@80%	33Ah	3.7V
UHD350	350Wh/kg	5C	500 Times@80%	20Ah	3.6V
UHD320	320Wh/kg	5C	800 Times@80%	55Ah	3.6V

High Power & Long Cycle

Series	Maximum Continuous Discharge Rate	Energy Density (Wh/kg)	Cycle Life	Nominal Capacity (Ah)	Nominal Voltage (V)
UCR5000	25C	260Wh/kg	800 Times@80%	5Ah	3.6V
UHC15	15C	210Wh/kg	1000 Times@80%	32Ah	3.75V

Ultra-Low Temperature

Series	Discharge Temperature	Maximum Continuous Discharge Rate	Cycle Life	Energy Density (Wh/kg)	Nominal Capacity (Ah)
ULT56	-56℃ ~ 45℃	1C	500 Times@80%	270Wh/kg	56Ah
ULT22	-43℃ ~ 70℃	30C	1800 Times@80%	200Wh/kg	22Ah

Tactical Core (Storage Life: 10 Years)

High Energy Density | Long Storage Life | High Discharge Rate

Operating Voltage: 2.0V ~ 3.9V
Operating Temperature: -40℃ ~ 55℃
High discharge rate, continuous discharge rate up to 1C, maximum discharge rate 5C
High energy density, reaching the level of traditional Lithium-ion batteries 2 times
Storage Life: 10 Years

Series	Energy Density (Wh/kg)	Nominal Voltage (V)	Nominal Capacity (Ah)	Maximum Continuous Current / Power	Maximum Pulse Current / Power
Cylindrical Cell
UDLR18650	350Wh/kg	3V	4Ah	4A	20A
Pouch Cell
UDL15	500Wh/kg	3V	15Ah	15A	45A
UDL25	470Wh/kg	3V	25Ah	25A	75A
Pack
8UDL15	365Wh/kg	24V	15Ah	280W	580W
15UDL25	390 Wh/kg	45V	25Ah	1000W	3300W

👇Technology Insight

Confused about Wh/kg? [Read our Guide on why 400Wh/kg is the future of flight]

The product is widely used in power supply of cruise missiles, UAVs, underwater drones, etc. As a dual-high product, it has obvious advantages in both energy density and Density power, and can solve the problem that the energy and power of equipment power supply cannot be balanced.
